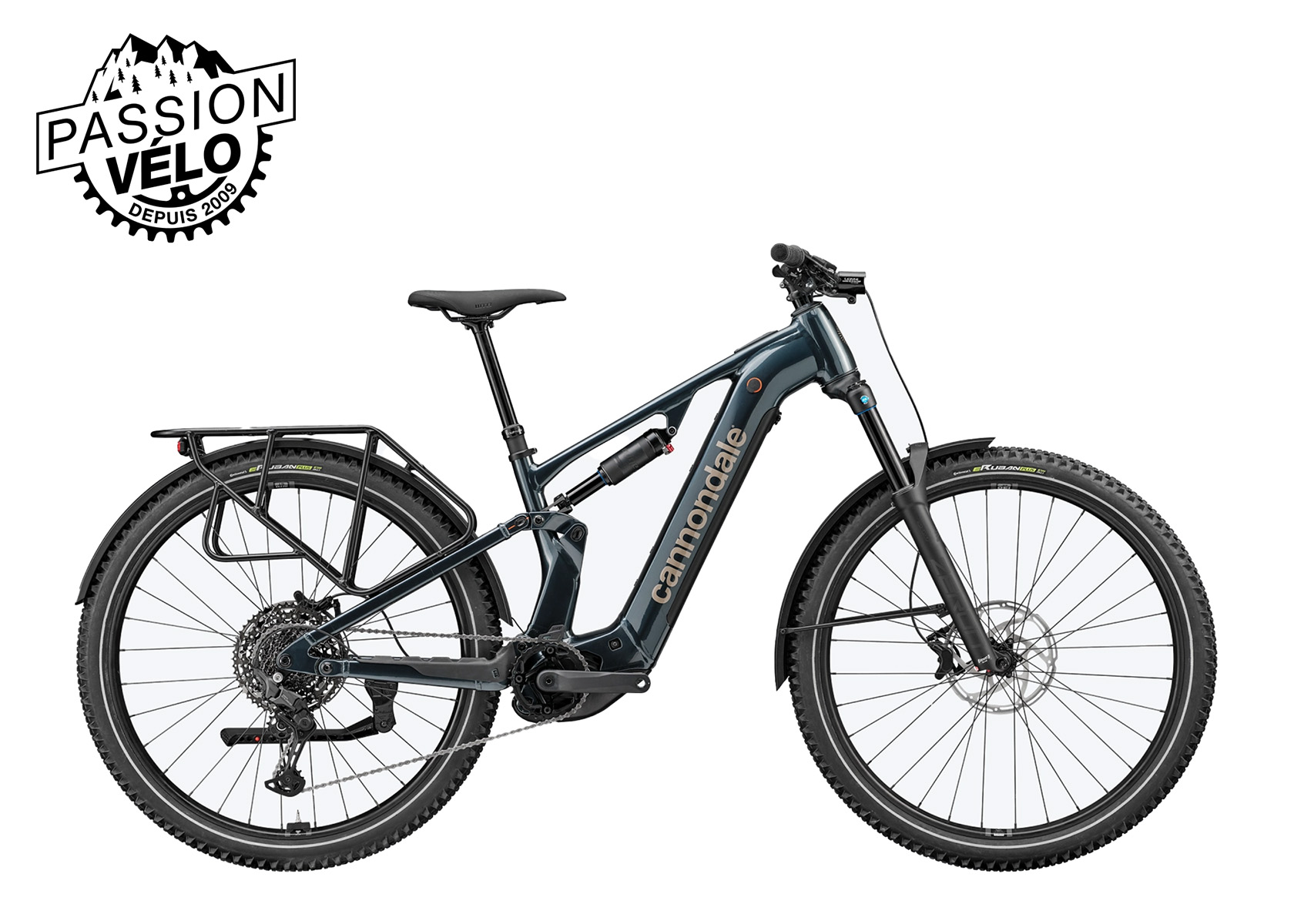

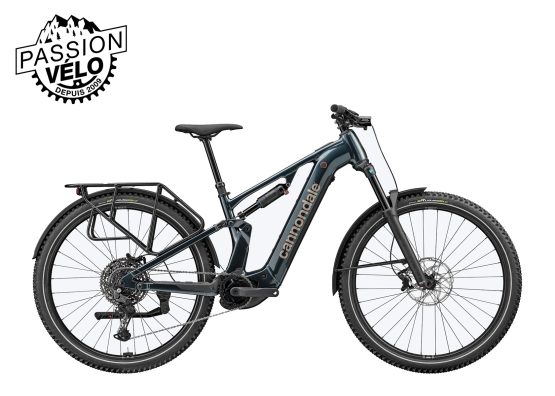

Moterra EQ 2025

Cadre

• Cadre

  Moterra, SmartForm C1 Alloy, 29″ wheels, 130mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack
• Fourche

  SR Suntour Zeron 36-X Boost, 150mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset
• Jeu de direction

  Acros ICR, 1.5″ to 1.8″, sealed bearings
• Rear Shock

  SR Suntour Edge Evo R, Air, adjustable rebound, 230×52.5mm

E-Système

• Drive Unit

  Bosch Performance Line CX
• Batterie

  Bosch PowerTube, 800Wh
• Chargeur

  Bosch 4A
• Affichage

  Bosch Purion 200

Pédalier

• Derailleur Arriere

  Shimano CUES U6000, LinkGlide
• Manettes

  Shimano CUES U6000, 11-speed, LinkGlide
• Chaine

  Shimano LG500, LinkGlide, 11-speed
• Pedalier

  FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Cassette

  Shimano CUES LG400, LinkGlide, 11-50, 11-speed

Les Freins

• Disques de freins

  Tektro Gemini SL 4-piston hydraulic disc, 203mm rotors, 2.3mm thickness
• Leviers de freins

  Tektro Gemini SL hydraulic disc

Roues

• Jante

  WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
• Rayons

  DT Swiss Champion 2.0
• Taille de pneu

  2.35
• Taille de roue

  29
• Moyeux

  (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
• Pneus

  Continental eRuban Plus, 29×2.3″, Black, Tube Type, Reflex

Composants

• Guidon

  Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
• Potence

  Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
• Poignees

  Cannondale TaperRidge
• Selle

  WTB Silverado Medium
• Tige de selle

  Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Extra

• Extra 1

  Lezyne Classic HB E1000+ STVZO front light w/ high beam remote, Lexyne SuperBright rear light, adjustable kickstand, integrated rear rack (15kg), Hebie Alumee fenders, Bosch PowerMore range extender compatible
